AZDEN 310LT UHF DIVERSITY WIRELESS MICROPHONE SYSTEM

$369.95

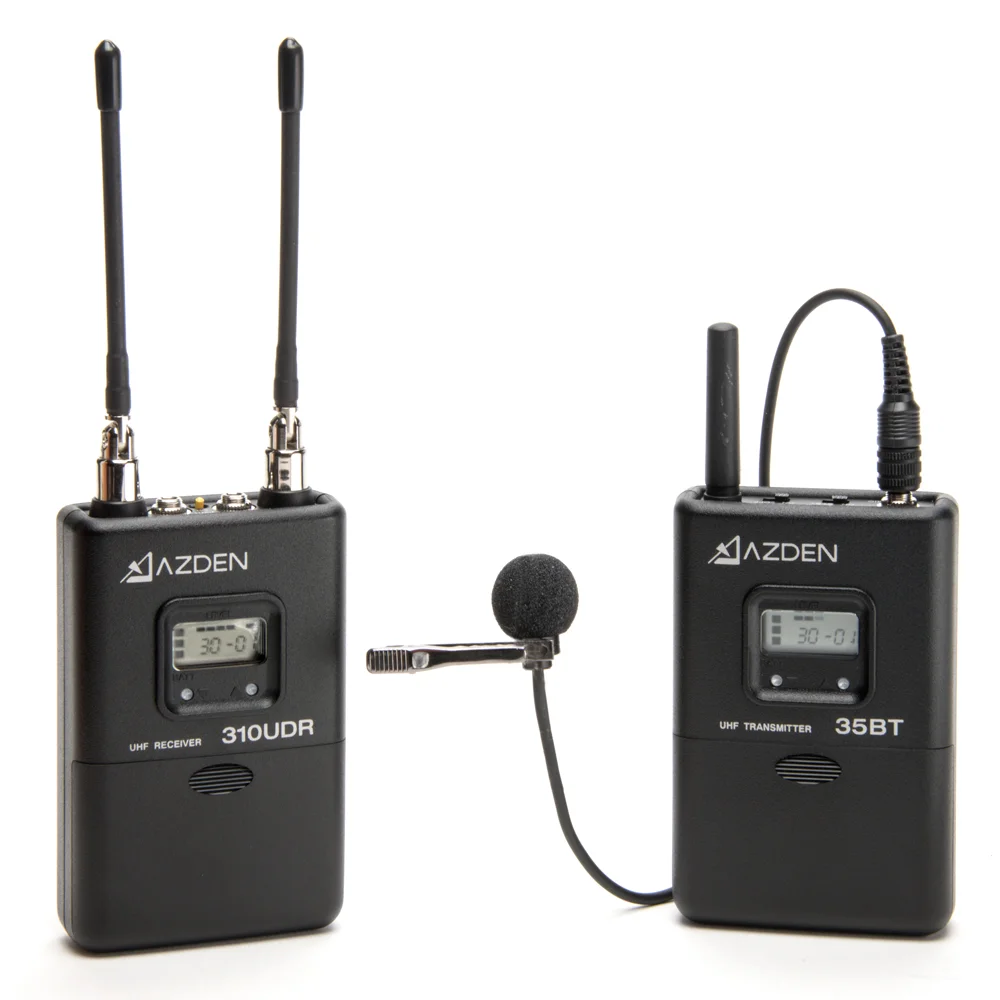

The Azden 310LT UHF On-Camera Bodypack System is a powerful yet affordable UHF wireless microphone system for camera-mount applications. The system consists of Azden's 35BT bodypack transmitter, EX-503L lavalier microphone and 310UDR camera-mount diversity receiver. With a feature set that includes 188 user selectable UHF frequencies, pivoting high-gain diversity antennas, and LCD digital display, the 310LT is guaranteed to meet the demands of consumer and professional video applications alike. The 310UDR receiver features main and headphone monitor outputs, and a removable shoe-mount adapter. Both the transmitter and receiver operate on standard AA alkaline batteries (not included).

In The Box

  • 310UDR receiver
  • Shoe mount
  • Mounting strips
  • MX-1 XLR output cable
  • 3.5mm mini-jack output cable
  • 35BT body-pack transmitter
  • EX-503L omni-directional lapel microphone
  • Manual
  • Hard shell carrying case

Features

  • 188 Selectable UHF Frequencies
  • New, Pivoting diversity High-Gain Antenna
  • Digital LCD Display w/ Multifunction Readout
  • Mini-Jack Out w/Supplied 24″ Mini-to-XLR Cable
  • Headphone Output on Receiver
  • Attached/Removable Shoe-Mount
  • Powered by 2 “AA” Batteries (not included)

SPECS

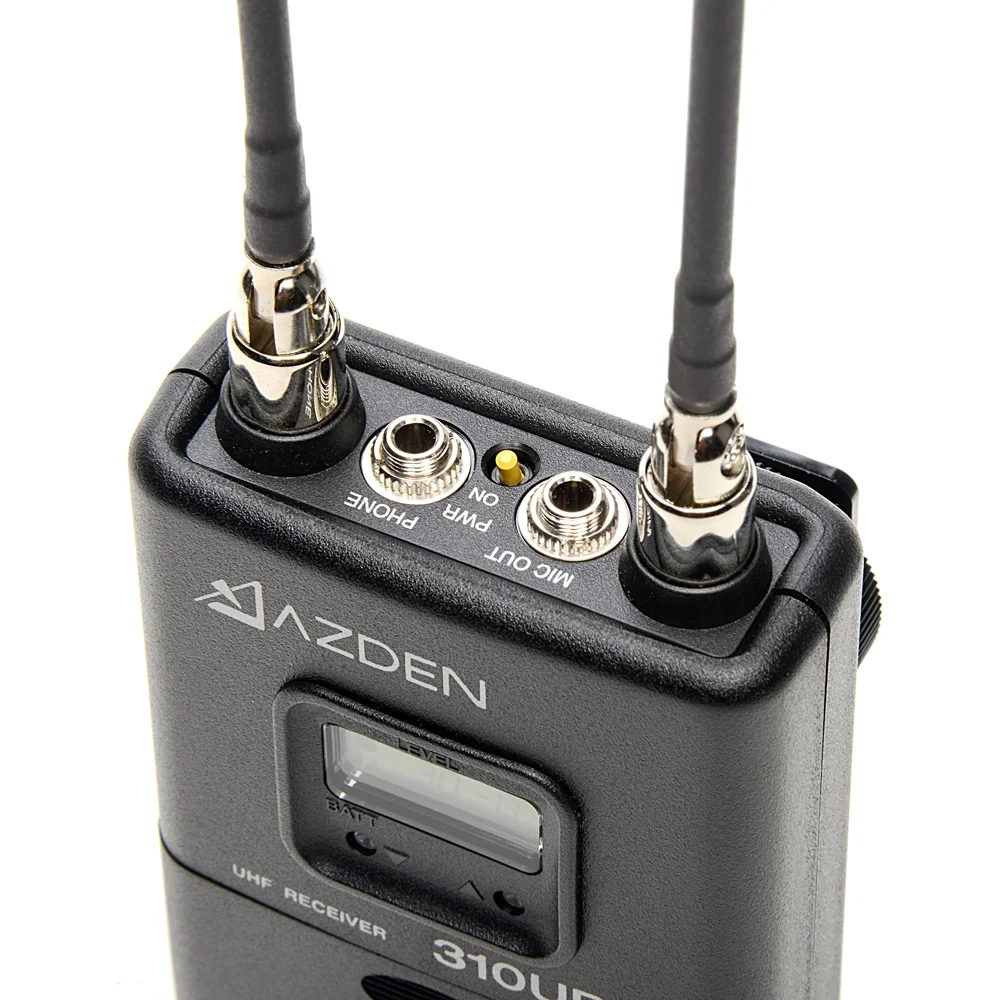

310UDR Receiver

  • Freq. Range: UHF 188 Frequencies (566.125-589.875MHz)
  • Type of Reception: FM
  • Oscillator: PLL Synthesized
  • RF Squelch Level: -95dBm
  • Frequency Response: 50Hz – 15kHz
  • S/N Ratio: >84dB 100% Dev.
  • Output Impedance: 1k Ohms
  • Audio Out: MIC Level – Balanced – 3.5mm Mini-Jack
  • -28 dBm – 100% deviation
  • Batteries: 2 “AA” Alkaline (2 x 1.5V) – 5-6 hours runtime
  • 2 “AA” rechargeable Ni-MH (2 x 1.2V)
  • Dimen.: 2.48″W x 3.86″H x 1.12″D (63 x 98 x 28.5 mm)
  • Weight: Approx. 6.7oz (190g) w/batteries

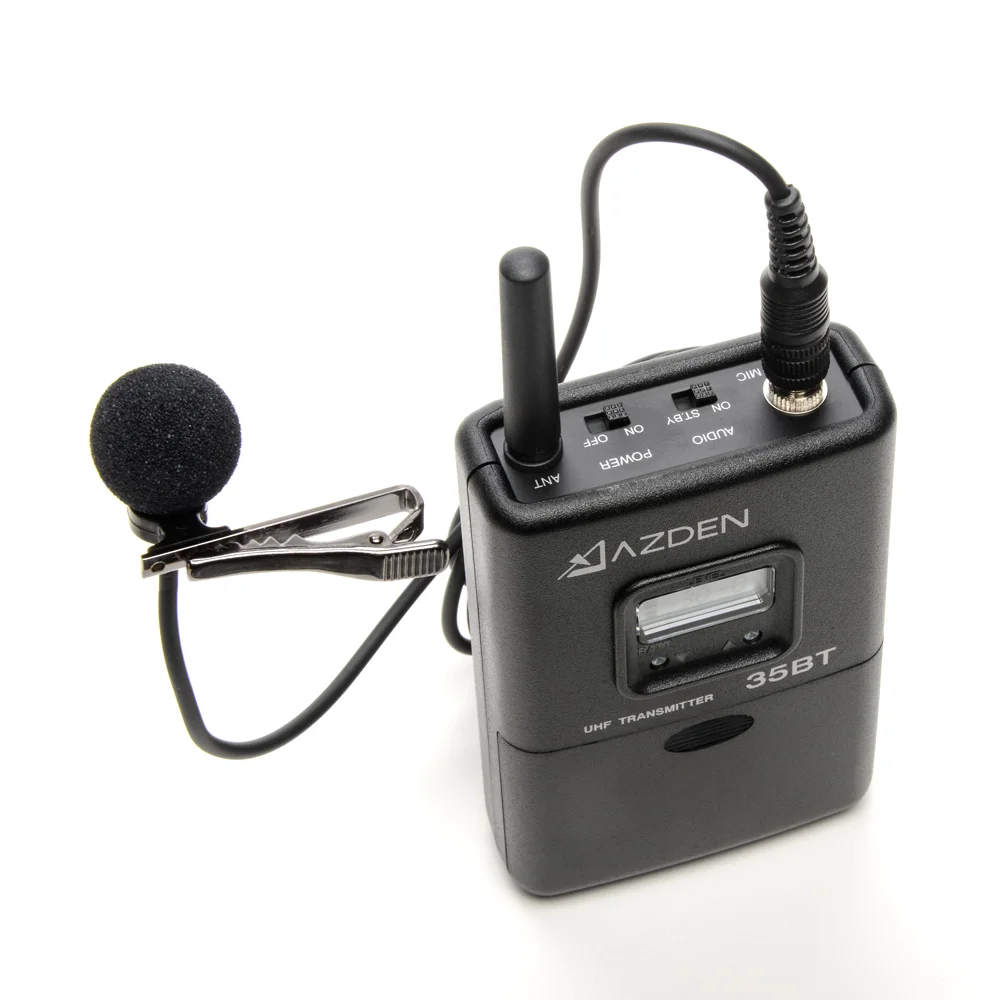

35BT Transmitter

  • Freq. Range: UHF 188 Selec. Freq. (566.125-589.875MHz)
  • Oscillator: PLL Synthesized
  • RF Power: 25mW
  • Frequency Response: 50Hz – 15kHz
  • Max. Deviation: ±40kHz @ 1kHz Mod., MIC Input – 11dBm
  • Batteries: 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
  • 2 “AA” rechargeable Ni-MH (2 x 1.2V)
  • Dimen: 2.52″W x 3.93″H x 1.16″D (64 x 100 x 27 mm)
  • Weight: Approx. 6oz (170g) w/batteries
